Product Description
OSiTC 3120 is a two-component thermally conductive potting compound composed of component OSiTC 3120A and component OSiTC 3120B. It has excellent thermal conductivity and is a low-temperature curing general-purpose potting compound.
Product Characteristics
● Applicable to room temperature and heat curing conditions.
● It has certain fluidity and high thermal conductivity.
● Good electrical insulation, less heat release and low shrinkage during curing.
Application Field
● Sealing protection for common modules and circuit boards.

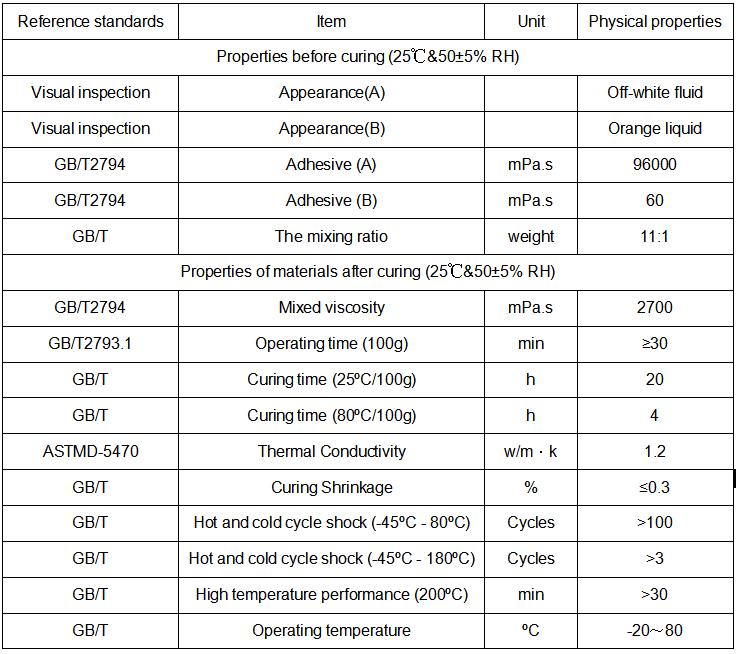

Typical Physical Parameters
Usage
● Clean the surface: clean the surface of the object to be glued to remove rust, dust and oil.
● Pre-mixing: Stir component A well before use. (It is normal if crystallization or agglomeration occurs at low-temperature phenomenon, it can be melted in a 50-80°C oven before stirring. )
● Rubber mixing: Accurately weigh components A and B according to the specified ratio, and stir evenly after mixing.
● Glue filling: pour the glue into the sample according to actual needs. (If necessary, the stirred glue can be vacuumed for 3-5 minutes at an absolute vacuum lower than 0.1Mpa, and then poured into the electronic components to be potted. After the glue is poured, continue to vacuumize for 3 -10 minutes is better, especially when curing with heat.)
Precautions
● Store away from children.
● Please refer to the product's MSDS for safety information.
Storage Method and Shelf Life
● Store airtight in a cool, dry place at room temperature.
● The shelf life is 12 months.
Package Style
● It can be packaged according to customer needs.
Precautions
● This product is a safe and non-toxic substance after curing, but try to avoid direct contact with the skin before curing.
● If the curing temperature is low, please prolong the curing time appropriately, otherwise the expected strength will not be achieved.
This technical document is for reference only, and the data in the document is obtained by the research and development personnel with a limited number of samples in the laboratory. Different personnel or different experimental methods may obtain different experimental results. Since the experimental conditions and details are beyond the scope of our company, we cannot guarantee the universality of these data in the client. It is the user's responsibility to judge the suitability of test data and test methods. We recommend that users refer to this technical information and repeat experiments for specific applications to determine the suitability of product applications.
